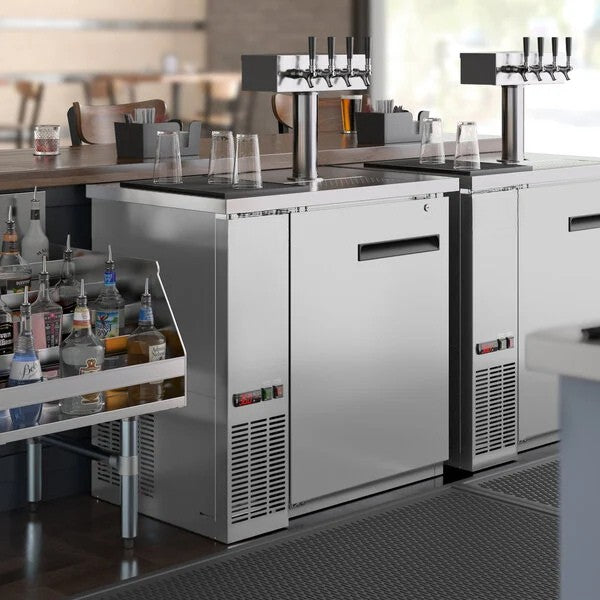

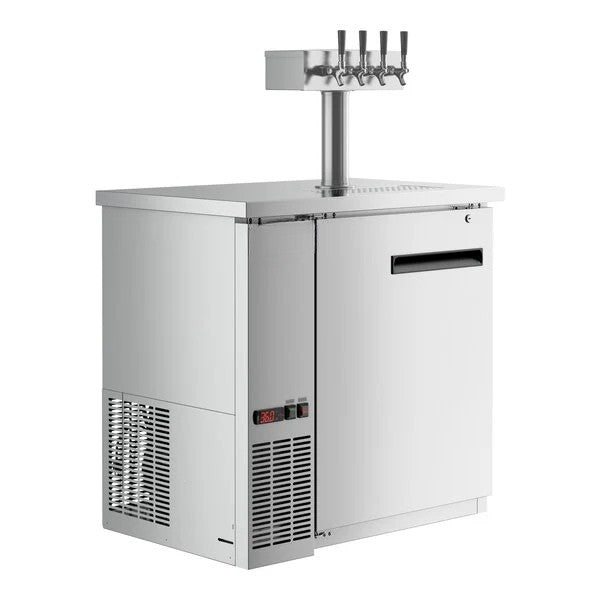

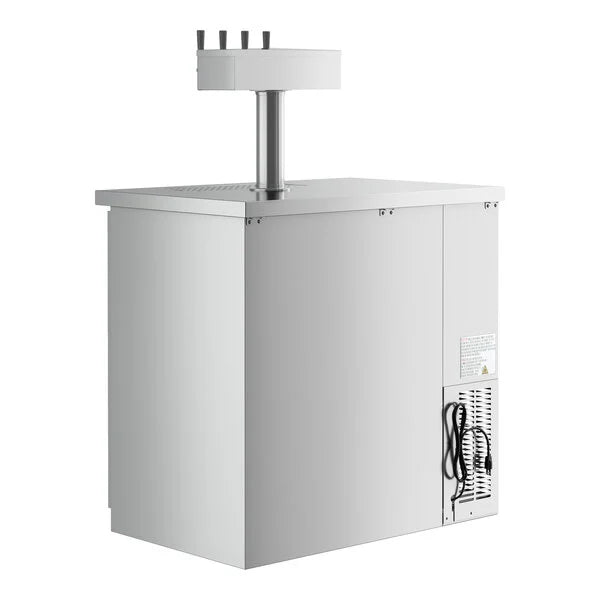

Whether you operate a pub, banquet hall, catering service, or facilitate other special events, this Ellington Co. UDD-36-HC-S 36" stainless steel four tap kegerator beer dispenser is an excellent way to offer crisp, refreshing draft beer to your guests without investing in a complex built-in tap system! This unit features a four tap tower with a 10 1/4" faucet height that allows you to easily fill pint glasses and pitchers with local microbrews, international macrobrews, and everything in between.

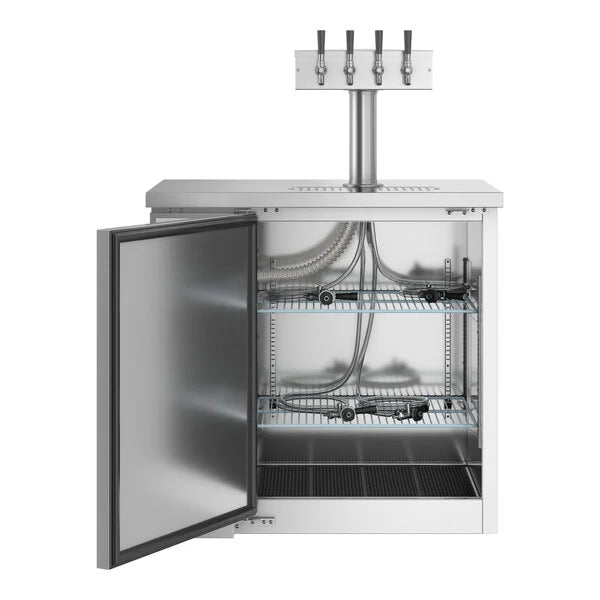

It holds (1) 1/2 keg and even comes with (2) 23 11/16" x 17 15/16" shelves for optional bottle or can storage. The epoxy-coated steel shelves are perfect for storing and organizing beverages for your bar service, from bottles of ale and beer to cans of crisp ciders. The solid door is not only self-closing to prevent potential energy loss, but also locks to prevent theft during off hours. This unit is equipped with knockout plugs to install external CO2 lines.
Unlike many competitive beer dispensers, this model ships with "D" system couplers so that you can tap kegs right out of the box! This commercial kegerator features a 201 type stainless steel interior and exterior, as well as a thick stainless steel top that is both durable and extremely simple to clean. A built-in drip tray further expedites end-of-day cleaning.
This unit has a 1/4 hp refrigeration system that circulates R290 hydrocarbon refrigerant. R290 refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. A 115V electrical connection is required for operation.
| Specs | Details |
|---|---|
| Quantity | 1 Each |
| Shipping Weight | 176 lb. |
| Width | 36 13/16 Inches |
| Depth | 24 3/8 Inches |
| Height | 35 5/8 Inches |
| Power Cord Length | 108 Inches |
| Overall Dimensions | Width: 36 13/16" • Depth: 24 3/8" • Height: 35 5/8" |
| Interior Dimensions | Width: 24 1/4" • Depth: 18 1/2" • Height: 30 1/2" |
| Tap Tower Dimensions | Diameter: 3" • Height: 16" • Faucet Height: 10 1/4" |
| Packaging Width | 39 1/8 Inches |
| Shelf Width | 23 3/5 Inches |
| Depth with Door Open | 49 Inches |
| Nominal Depth | Standard |
| Packaging Depth | 27 1/2 Inches |
| Shelf Depth | 17 9/10 Inches |
| Packaging Height | 41 3/4 Inches |
| Amps | 3 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| Wattage | 280 Watts |
| Capacity | (1) 1/2 Keg • 7.75 cu. ft. |
| Capacity (per Shelf) | 88 lb. |
| Casters | Without Casters |
| Compressor Location | Left Side Mounted |
| Compressor Style | Side / Rear Breathing |
| Countertop Type | Stainless Steel |
| Door Style | Swing |
| Door Type | Solid |
| Exterior Finish | Stainless Steel |
| Features | LED Lighting, Removable Magnetic Door Gaskets, Self-Closing Doors |
| Horsepower | 1/4 hp |
| Insulation Material | Polyurethane Foam |
| Material | Stainless Steel |
| Maximum Ambient Temperature | 90°F |
| Number of Doors | 1 Door |
| Number of Kegs | 1 Keg |
| Number of Shelves | 2 Shelves |
| Number of Taps | 4 Taps |
| Plug Type | NEMA 5-15P |
| Refrigerant Type | R-290 |
| Shelf Material | Epoxy-Coated Steel |
| Starting Amps | 9 Amps |
| Starting Wattage | 840 Watts |
| Style | 1/2 Barrel |
| Temperature Range | 33 - 40°F |
| Type | Kegerators / Beer Dispensers |
